10A Micro-Ohmmeter

10A Micro-Ohmmeter

Rs. 0.00
Rs. 0.00
Sale Sold out

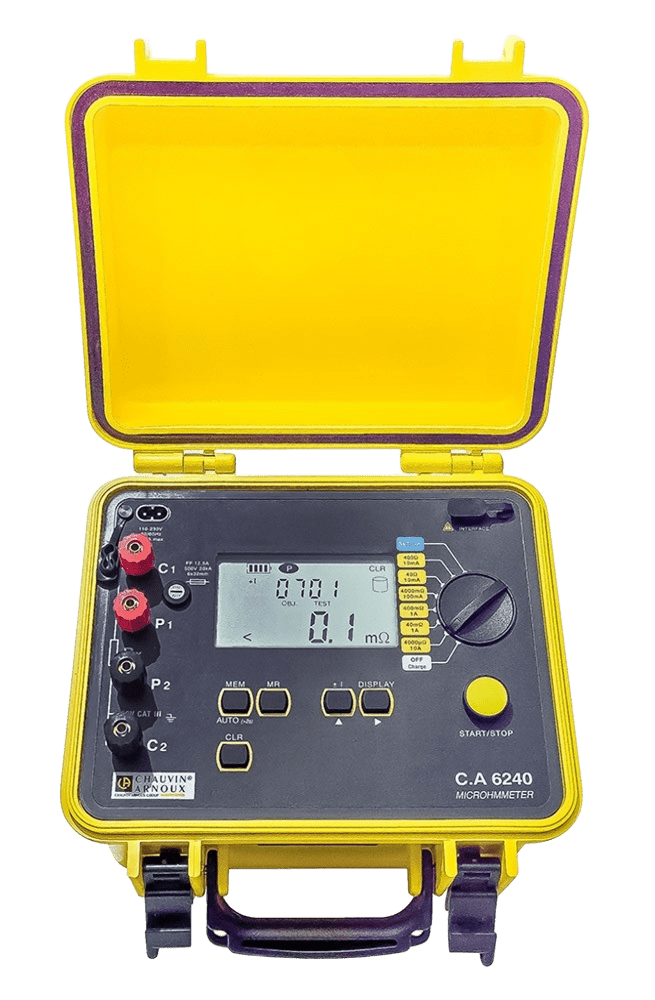

CA 6240

10A Micro-Ohmmeter

The CA 6240 is a precision micro-ohmmeter designed for accurate measurement of very low resistances. Perfect for testing circuit breakers, transformer windings, and motor connections with exceptional reliability.

Safety Rating

CAT III 600V

Accuracy

±0.25% ± 2 counts

Key Features

Large backlit LCD display for clear readings
Auto measurement mode for ease of use
Automatic recording mode with manual override
Auto power-off function to preserve battery
Memory storage for 100 measurements
Optical/USB communication interface
Complete PC interface software included
Portable and rugged design for field use
Temperature compensation capability
Multiple test current settings

Applications


Circuit breaker contact resistance testing

Transformer winding resistance measurement

Motor and generator winding testing

Cable and conductor resistance verification

Welding quality control testing

Electrical connection integrity checks

Technical Specifications


Measurement range:5 µΩ to 400 Ω

Test current:Up to 10 A

Max resolution:1 µΩ

Automatic power off:Yes

Power supply:NiMH rechargeable battery

Storage:100 measurements

Communication:USB optical link

Data export software:Yes

Protection:IP53

Electrical safety:IEC 61010-1 CAT III 50 V

Dimensions:273 x 247 x 280 mm
Weight:5 kg
