CA 6424

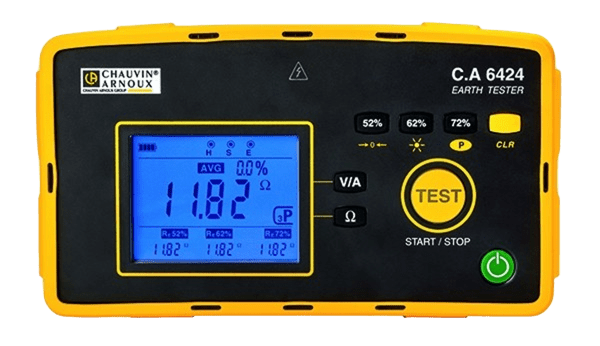

2P/3P Earth Tester
Professional earth resistance tester with backlit LCD for 2-pole and 3-pole measurements. Ideal for ground system verification and safety testing.
Safety Rating
CAT III 600V
Accuracy
±2% + 1 count
Key Features
Backlit custom 206-segment LCD display
Auto Power off for battery conservation
Noise indication for interference detection
Measurement Mode: V, I, R 2P (Ω), R 3P (Ω)
Compact and portable design
Easy to use interface
Accurate measurements up to 50 kΩ
Voltage measurement up to 600V AC
Leakage current measurement
Professional build quality
Applications
Technical Specifications
Voltage:0 to 600 V
2P resistance:0.05 Ω to 50 kΩ
3P earth:0.5 Ω to 50 kΩ
Measurement mode:One-shot or permanent
RH stake resistance measurement:Yes
USE voltage measurement:Yes
Current measurement (G72 clamp):0.5 mA to 60 A
Automatic power-off:Deactivatable
Compliance:IEC 61557-1 and IEC 61557-4
Power supply:NiMH batteries rechargeable via mains or USB socket
