3 Channel Power Quality Analyzer

Name: 3 Channel Power Quality Analyzer
Brand: AGN ELECTRICALS
Availability: OutOfStock

Rs. 0.00

Sale Sold out

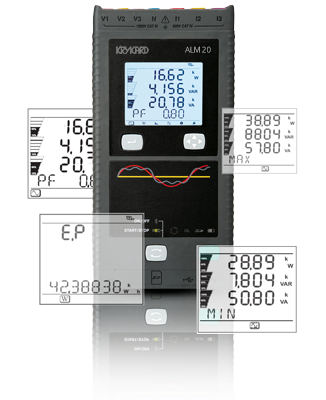

ALM 20

The ALM 20 provides essential power quality analysis in a compact, self-powered package. Perfect for long-term monitoring and basic power quali

Compact self-powered design

Long-term monitoring capability

AC/DC voltage measurement up to 1,000V Ph-N

Power measurement: kW, kVAr, kVA, PF & DPF

Energy measurement: kWh, kVArh, kVAh

THD & Harmonics up to 50th order

User-friendly interface

Portable and rugged construction

Battery-powered operation

Real-time data logging

Automatic measurement recording

Environmental protection rating

Easy setup and configuration

Professional measurement accuracy

Basic power quality monitoring

Energy consumption analysis

Electrical system troubleshooting

Preventive maintenance programs

Small to medium facility monitoring

Educational and training purposes

TRMS AC+DC Voltage:10–1000 V (ph-N & ph-ph), up to 650 kV ratio
TRMS AC+DC Current:5 mA–12 kAac / 50 mA–1300 Adc, up to 25 kA ratio (probe dependent)
Frequency:DC / 50 / 60 / 400 Hz
Power values:P, P+, Punb, Qf, N, D, S; cos Φ, tan Φ, PF
Energy values:up to 4 EWh, EVAh, EVarh
Harmonics:THD for V & A, harmonics to 50th order
Recording:200 ms / 1 s trends, selectable 1–60 min intervals; several weeks to years (SD card up to 32 GB)
Phasor diagram:Yes (via DataView® or Android App)
Alarms:Up to 32; email alerts & reports via DataViewSync™
Protection:IP54 (disconnected) / IP20 (connected), IEC 61010 CAT IV 600V / CAT III 1000V
Interfaces:USB, Ethernet/Wi-Fi LAN, Ethernet/Wi-Fi Direct
Mounting:Magnetic
Dimensions / Weight:256 × 125 × 37 mm / < 1 kg
