3-Phase Energy Meter

Name: 3-Phase Energy Meter
Brand: AGN ELECTRICALS
Availability: OutOfStock

Rs. 0.00

Sale Sold out

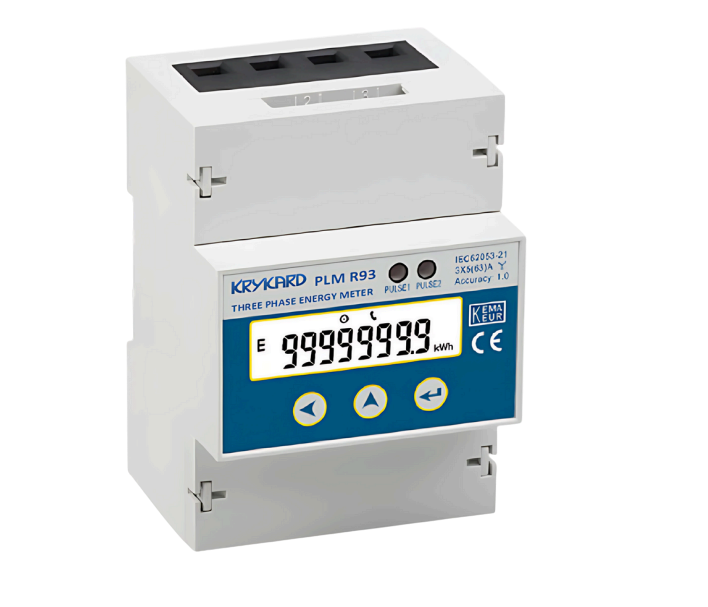

PLM R93

The PLM R93 offers comprehensive three-phase energy measurement with advanced features and historical data recording for industrial and commercial applications.

Safety Rating

Three Phase AC

Accuracy

Class 1.0

Key Features

35mm DIN rail installation

kWh Class 1.0 as per IEC 62053-21

7+1 digit LCD display

Phase sequence error indication

RS485 port with Modbus-RTU protocol

2 LED Pulse indicators

Multi-tariff capability

Historical data storage

Bidirectional measurement

Comprehensive three-phase monitoring

Applications

Three-phase energy monitoring

Industrial applications

Commercial buildings

Multi-tariff billing

Load management

Energy analysis

Technical Specifications

Voltage:184–276 V (L–N), AC 230 V ph-N / 400 V ph-ph

Current:Direct 5(63) A

Accuracy:Voltage & active power 0.2%, PF 0.5%, Class 1 kWh (IEC 62053-21)

Frequency:47–65 Hz

Energy:Active class 1, reactive class 2

Display:7+1 digit LCD

Comms:RS485 Modbus RTU

Features:Historical daily/monthly/annual energy data storage
