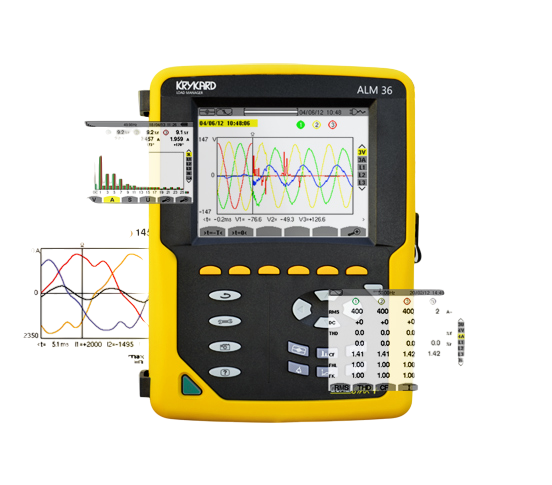

ALM 36
4 Channel Power Quality Analyzer
The ALM 36 provides professional-grade power analysis with IEC compliance, advanced alarms, and transient capture for comprehensive quality assessment in demanding applications.
Voltage Range
1,000V Ph-N
Accuracy
Key Features
Transient capture up to 210 counts
TrueInrush function for motor analysis
THD & Harmonics up to 50th order
Pst & Plt flicker measurements
IEC compliance for professional use
Advanced alarm system
Comprehensive data analysis
Rugged industrial design
High-resolution measurement
Multi-channel analysis
Automatic event detection
Professional reporting tools
Network connectivity options
Advanced triggering system
Applications
Technical Specifications
- Inputs:4 Voltage / 4 Current
- TRMS AC+DC Voltage:2–1000 V (ph-N), 2–2000 V (ph-ph)
- TRMS AC+DC Current:5 mA–10 kA (probe dependent)
- Frequency:40–70 Hz
- Power values:W, VA, var, PF, DPF, cos φ
- Energy values:Wh, VAh, varh
- Harmonics:DC, 1st to 50th order; THD for V & A
- Flicker:Pst (10 min) & Plt (2 hrs)
- Other PQ parameters:Energy loss, Voltage & Current unbalance (%)
- Transient capture:Up to 210 events
- Alarms:Up to 40 types, 16,000 events max
- Recording:Trend data to SD card; snapshots up to 50 screens + channel data
- Display:Color TFT 320×240 with vectorial representation
- Protection:IP53; IEC/EN 61010-1 CAT III 1000V / CAT IV 600V
- Interfaces:Isolated USB, SD card, DataView® software
- Battery life:>13 h (display ON), up to 25 h (recording, display OFF)
- Dimensions / Weight:250 × 200 × 67 mm / 1.95 kg
