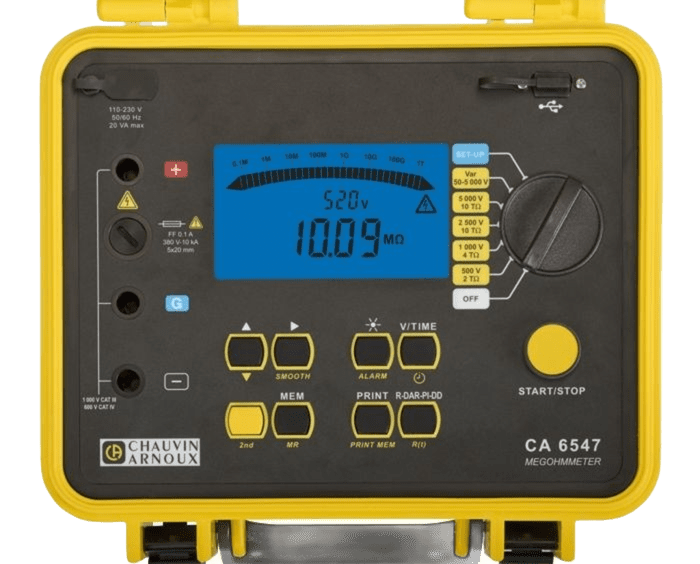

5kV High Voltage Insulation Testers
5kV High Voltage Insulation Testers
Regular price
Rs. 0.00
Regular price
Sale price
Rs. 0.00
Quantity
Couldn't load pickup availability

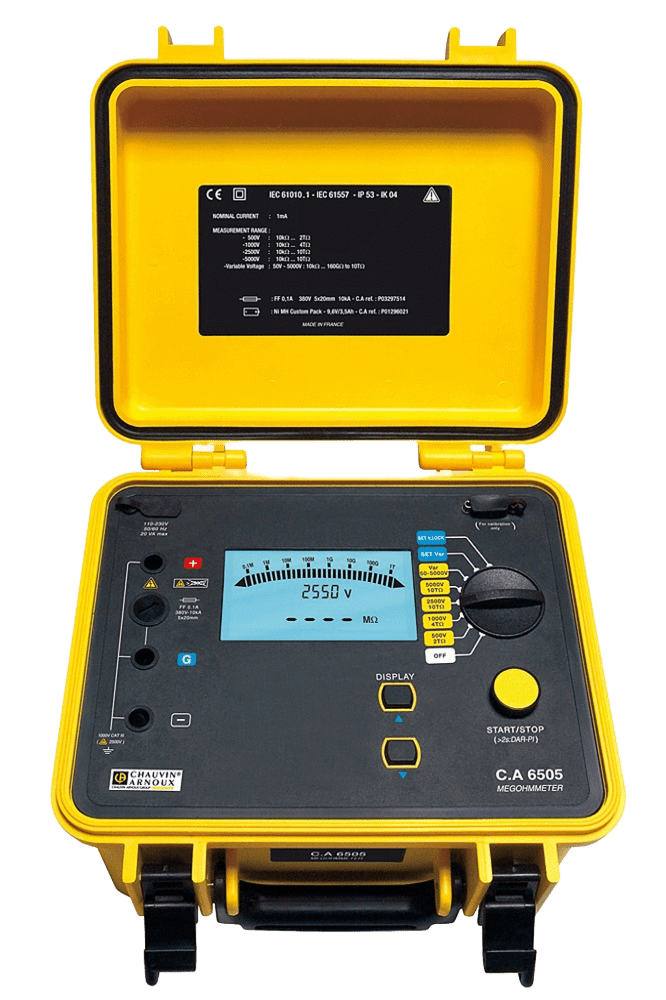

CA 6505/CA 6545
5kV High Voltage Insulation Testers
High voltage 5kV insulation testers for power utilities and industrial plants with programmable test duration and advanced safety features.
Safety Rating
CAT III 5100V
Range
10 kΩ to 10 TΩ
Key Features
Display : Backlit LCD graphic display with bargraph
Programmable test duration
Automatic calculation of the DAR/PI
DD calculation (CA 6545)
Locking test voltage
Programmable Alarms (CA 6545)
Smoothing of Display (CA 6545)
Automatic detection of the presence of AC or DC external voltage on terminals
Auto power save mode to save battery power
Applications
Technical Specifications
Test voltage:Fixed 500/1,000/2,500/5,000 V DC or programmable from 40 V to 5,100 V DC
Measurement range:10 kΩ to 10 TΩ
Programmable test duration:Yes
DAR & PI ratios:Calculation of DAR & PI quality ratios
Measurements:Voltage, capacitance, leakage current
Display:LCD screen with bargraph
Power supply:NiMh rechargeable battery
Compliance:IEC 61557
Protection rating:IP53
Safety category:IEC 61010 1,000 V CAT III
Dimensions:270 × 250 × 180 mm
Weight:4.3 kg
