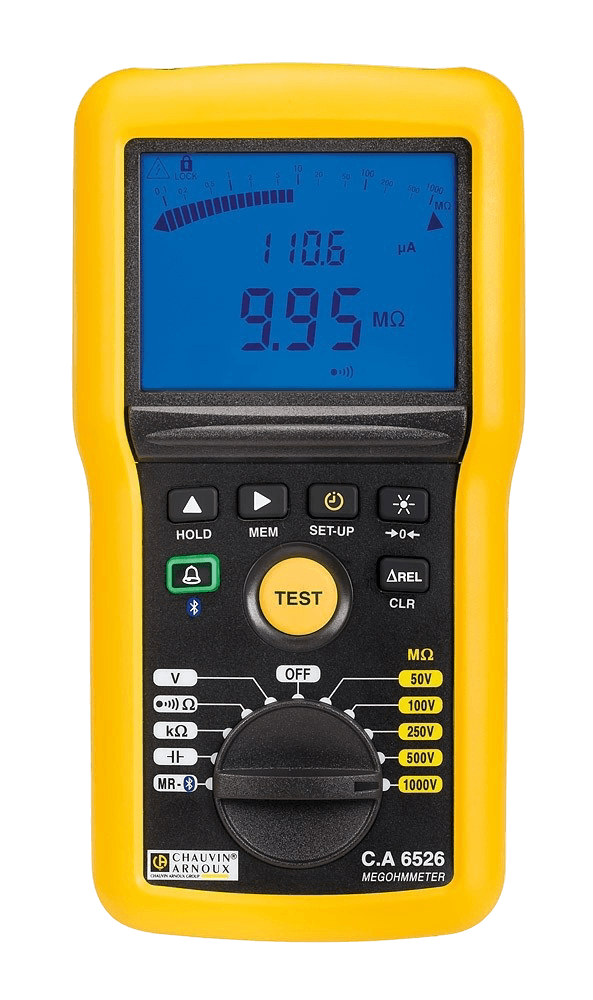

Advanced 1kV Insulation Testers

Name: Advanced 1kV Insulation Testers
Brand: AGN ELECTRICALS
Availability: OutOfStock

Rs. 0.00

Sale Sold out

CA 6524/CA 6526

Advanced 1kV insulation testers with Bluetooth connectivity, large memory storage, and configurable alarms for professional testing applications.

CAT IV 600 V

10 kΩ to 200 GΩ

Display : 4000 counts, double + bargraph

Continuity at 200mA (0.00Ω - 10.00Ω)/ 20mA (0.0Ω - 100.0Ω)

PI & DAR

Visual Pass/Fail : Red/Green (CA 6526)

Timer (mins) : Upto 39:59

Configurable alarms

Memory : 300 measurements (CA 6524), 1300 measurements (CA 6526)

Communication : Bluetooth (CA 6526)

Industrial testing

Field testing

Quality assurance

Preventive maintenance

R&D applications

INSULATION:50-100-250-500-1000 V test voltage

Measurement range:200 GΩ

Test mode:Manual, Lock, Timer, PI, DAR

Continuity:200mA / 20mA measurement current

Voltage measurement:700 V

Frequency measurement:15.3 - 800 Hz

Resistance measurement:0 - 1,000 kΩ

Display:Double display + logarithmic bargraph

Storage:300 measurements

Magnetic mounting elements:Yes

Alarms:Yes

Power supply:6 × LR6 / AA batteries

Dimensions:211 × 108 × 60 mm

Weight:850 g

Protection rating:IP54, safety category: 600 V CAT IV
