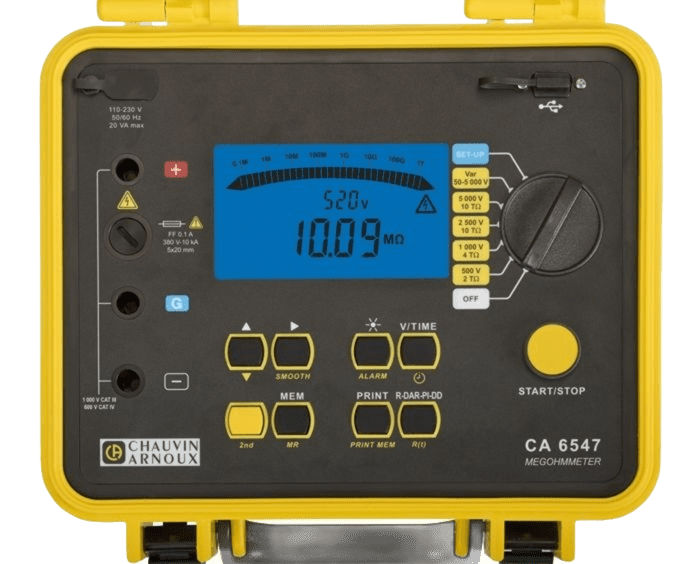

CA 6547/CA 6549

Advanced 5kV insulation testers with USB connectivity, large memory storage, and direct R(t) curve plotting for comprehensive power system analysis.

CAT III 5100V

10 kΩ to 10 TΩ

Large backlit LCD screen, with digital display & bargraph

Automatic calculation of the DAR/PI/DD ratios

Programmable alarms

Displays a error code in an anamoly condition (CA 6549)

Direct plotting resistance over time (R(t)) curves in display (CA 6549)

Calculation of R at Reference Temperature (T°) (CA 6549)

Memory : 128KB storage capacity

Communication : USB (Two-Way)

PC interface

Power system analysis

Industrial maintenance

Utility testing

Research applications

Advanced diagnostics

Measurement range:10 kΩ to 10 TΩ

4 fixed test voltages:500 / 1,000 / 2,500 and 5,000 V

Adjustable test voltage position:40 to 5,100 V in 10 V or 100 V increments

Large backlit LCD screen:Digital display and bargraph

Quantitative insulation analysis:DAR, PI, and DD (dielectric discharge) quality ratios calculated automatically and R(t) curve plotted

Large number of functions:Programmable test duration, test voltage locking, smooth function, programmable alarms, etc.

Storage:Several thousand measurements

USB connector:For connection to PC (Megohmmeter data processing software)

Power supply:NiMH rechargeable battery for 30 days’ operation with 10 DAR measurements and 5 PI measurements per day

Electrical safety:IEC 61010-1 Cat.III 1000V or Cat.I 2500V and IEC 61557

Dimensions:270 × 250 × 180 mm

Weight:4.3 kg
