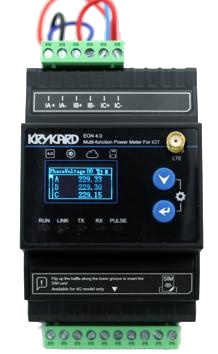

EON 4.0
Advanced Energy Meter
The EON 4.0 series provides advanced energy measurement with IoT connectivity options for modern energy management systems and smart grid applications.
Safety Rating
CAT III 480V
Accuracy
Class 0.5
Key Features
Active energy accuracy up to Class 0.5
PT/CT programmable
Auto Phase sequence adjustment
2 DI Standard, 2 DO (optional)
Multiple communication options
Gateway function (4.0G & 4.0E)
Built-in memory for data storage
Remote configuration capability
IoT connectivity
Cloud integration ready
Applications
Technical Specifications
TRMS AC Voltage:10–500 V, 0.2% accuracy; up to 1000 kV primary ratio
TRMS AC Current:5 mA–6.5 A, 0.2% accuracy; up to 100,000 A primary ratio
Frequency:40–70 Hz, 0.1%
Power values:kW, kVAr, kVA, PF, phase angle
Energy:kWh, kVArh, kVAh (active class 0.5%, reactive class 2%)
Harmonics:Up to 63rd order
Residual current:0–8000 mA
Temperature:0–150°C
Communication:4G / RS485 / LAN, Modbus RTU & TCP
