DC Energy Meter
DC Energy Meter
Regular price
Rs. 0.00
Regular price
Sale price
Rs. 0.00
Quantity
Couldn't load pickup availability

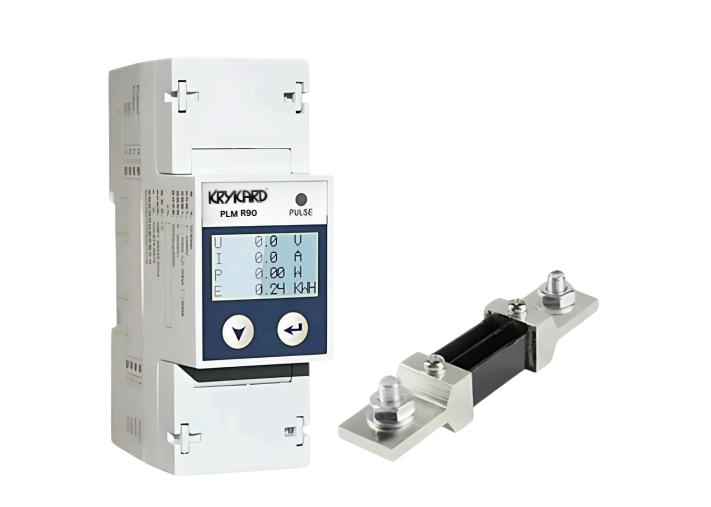

PLM R90
DC Energy Meter
The PLM R90 is designed for DC energy measurement with DIN rail mounting for easy installation in DC power systems and renewable energy applications.
Safety Rating
DC Applications
Accuracy
Class 0.5
Key Features
35mm DIN rail installing
Accuracy: Class 0.5
LED indicates pulse output
RS485 port (Optional)
2 module size
Shunt options: 100A, 200A, 300A
Compact design
Easy installation
DC measurement capability
Solar application ready
Applications
Technical Specifications
Voltage:0–1000 VDC
Current:100 A / 200 A / 300 A via 75 mV shunt
Accuracy:Class 0.2
Communication:RS485, Modbus RTU or DL/T645
Pulse output:100 impulse/kWh
Display:LED with pulse indication
Protection:IP20
