TC 4460 / TC 4460H

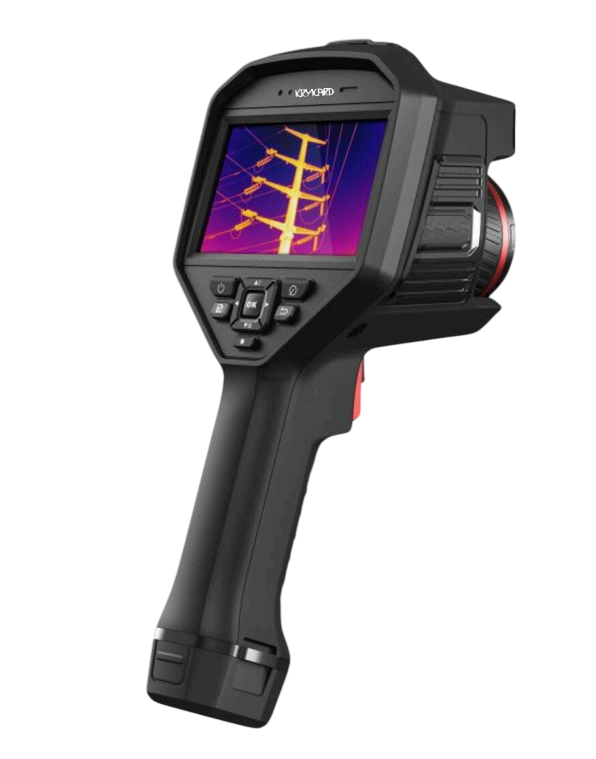

Extended Range Imager
Extended range thermal imager with superior resolution and temperature range for demanding industrial applications.
IR Resolution
480 × 360
Accuracy
±2°C, ±2%
Temperature Range
-20°C to 1200°C
Key Features
IR Resolution: 480 × 360 (172,800 pixels)
SuperIR Resolution: 960 × 720
Temperature Range: -20°C to 1200°C
Accuracy: ±2°C, ±2%
Extended temperature range
NETD: < 30 mK
Focus: Manual & minimum distance 0.1m
Image Frequency: 50 Hz
High-temperature capability
Superior thermal sensitivity
Industrial-grade reliability
Advanced analysis capabilities
Professional durability
Extended measurement range
Applications
Technical Specifications
IR Resolution:480 × 360
SuperIR Resolution:960 × 720
Temperature Range:-20°C to 650°C (TC 4460), -20°C to 2000°C (TC 4460H)
Accuracy:±2°C, ±2%
FOV:18.7° × 14° (optional lens available)
NETD:< 35 mK
Focus:Laser AF / Continuous AF / Manual / Touch AF, min. 0.25 m
Image Frequency:50 Hz
Display:800 × 480, 4.3" LCD touchscreen
Battery:~4 hours (interchangeable)
Memory:64 GB Micro SD (60,000 images, 54 hrs video)
