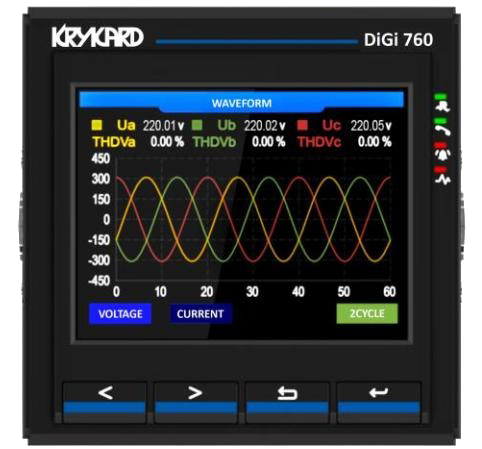

DiGi 760
High Precision Meter
The DiGi 760 features a TFT color display with real-time waveform visualization and advanced power quality monitoring capabilities for critical applications.
Safety Rating
CAT III 480V
Accuracy
Class 0.2s
Key Features
Accuracy Class 0.2s as per IEC 62053-22
TFT colorful LCD display with 320 x 240 resolution
Real Time waveform Display
Voltage swell/sag event recording with waveform
Ethernet Port with Modbus TCP/IP protocol
Individual harmonics on V & I up to 63rd order
K-Factor, Crest Factor measurements
4AO, 8DI (Optional)
Advanced power quality analysis
Event recording with timestamps
Applications
Technical Specifications
Voltage:Up to 480 V LL; PT primary programmable to 6900 V
Current:5 A nominal; CT primary programmable to 10,000 A
Accuracy:Voltage/current 0.1%, power 0.2%, PF 0.2%, kWh Class 0.2s
Harmonics:Up to 63rd order, THD
Communication:RS485 & Ethernet Modbus TCP/IP
Display:TFT color LCD
Protection:IP52 front, IP30 case
