INSULATION TESTERS 1KV
INSULATION TESTERS 1KV
Regular price
Rs. 0.00
Regular price
Sale price
Rs. 0.00
Quantity
Couldn't load pickup availability

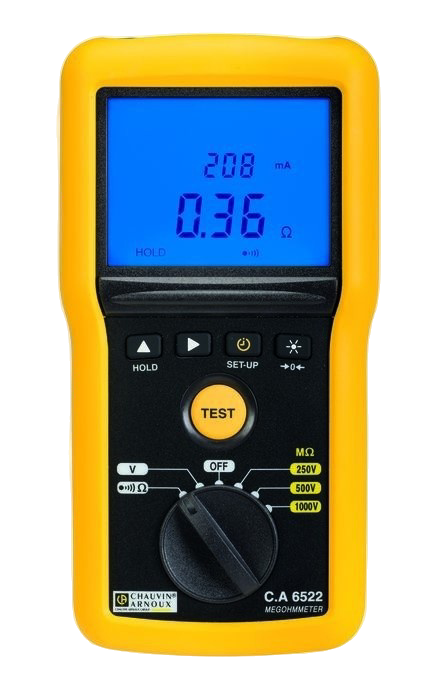

CA 6522/CA 6528
Professional 1kV Insulation Testers
Professional 1kV insulation testers designed for electrical maintenance and troubleshooting with visual alarms and high accuracy measurements.
Safety Rating
CAT III 600V
Range
50 kΩ to 40 GΩ
Key Features
Display : 4000 counts, double digital backlit LCD screen
Logarithmic bargraph (CA 6522)
Continuity at 200mA
CA 6528 : 0.02Ω - 40Ω CA 6522 : 0.00Ω - 10.00Ω
Visual alarm : Blue/Red backlighting (CA 6528)
Timer (mins) : Upto 39:59
Applications
Technical Specifications
CA 6522
INSULATION:50 V, 100 V, 250 V, 500 V, 1000 V test voltage
Measurement range:200 GΩ
Test mode:Manual, Lock, Timer, PI, DAR
Continuity:200 mA / 20 mA measurement current
Voltage measurement:700 V
Frequency measurement:15.3 Hz – 800 Hz
Resistance measurement:0 – 1,000 kΩ
Display:Double display + logarithmic bargraph
Storage:300 measurements
Magnetic mounting elements:Yes
Alarms:Yes
Power supply:6 × LR6 / AA batteries
Dimensions:211 × 108 × 60 mm
Weight:850 g
Protection rating:IP54, safety category: 600 V CAT IV
CA 6528
Voltage:0 to 700 VAC/DC
Insulation:Up to 11 GΩ
Continuity:0.02 Ω to 40 Ω
Resistance:1 Ω to 420 kΩ
Automatic voltage detection:Yes
Compliant with:IEC 61557-1-2-4-10
Electrical safety:IEC 61010-1, 61010-2-030, 61010-2-034 - 600V CAT IV
Protection rating:IP40
