Multi-Channel Meter

Multi-Channel Meter

Rs. 0.00
Rs. 0.00
Sale Sold out

Multy4

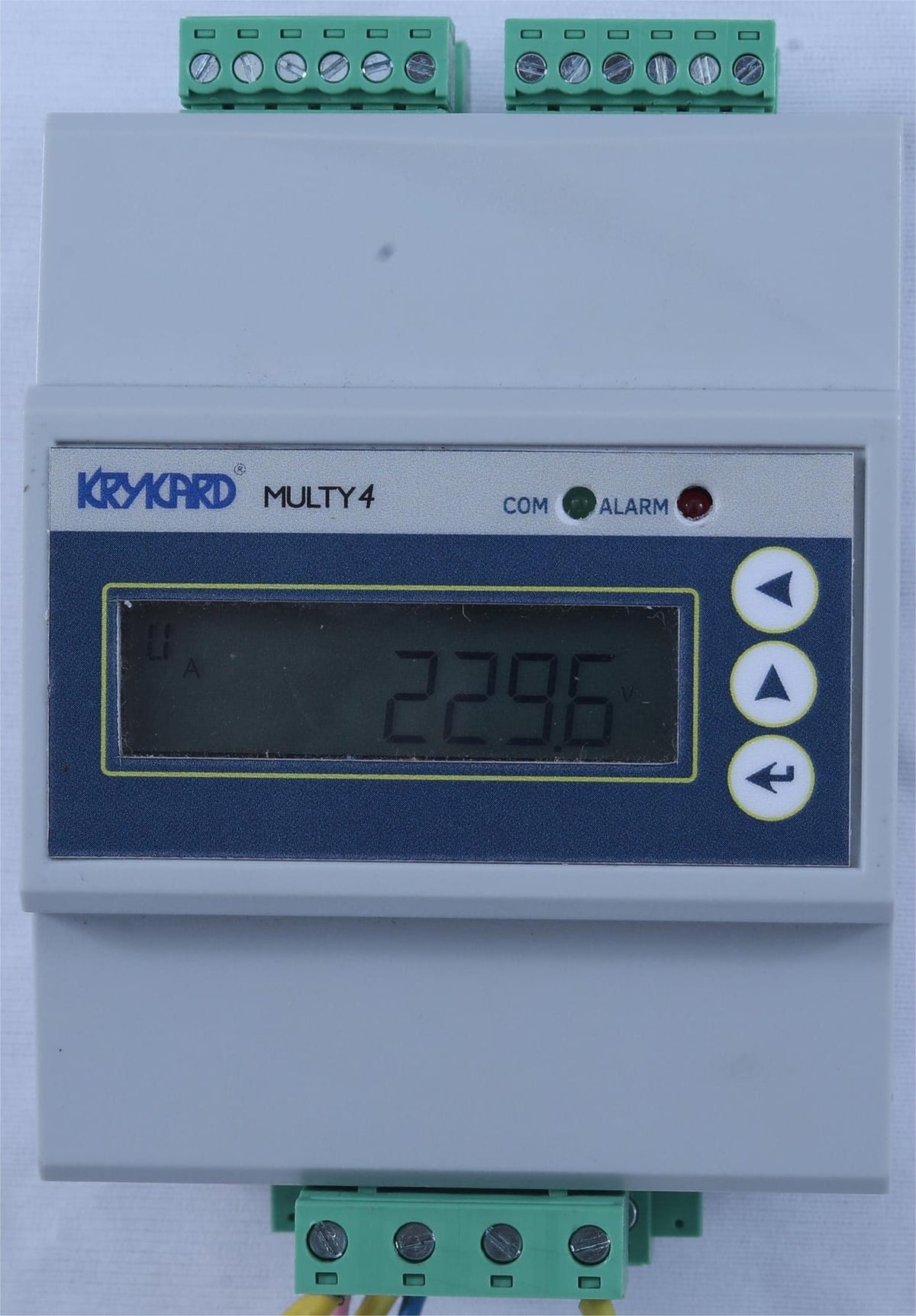

Multi-Channel Meter

The Multy4 provides multi-channel energy monitoring with special high-accuracy CT for comprehensive monitoring of multiple circuits in a single compact unit.

Safety Rating

CAT III 500V

Accuracy

Class 1.0

Key Features

Backlit custom LCD display
Accuracy Class 1.0 as per IEC 62053-21
CT primary programmable with 2kV isolation
Special high-accuracy CT supplied
RS485-modbus RTU Protocol
Load management module
Password protection
Compact design
Multi-circuit capability
Cost-effective monitoring solution

Applications


Multi-circuit monitoring

Industrial energy management

Building automation

Load distribution monitoring

Energy billing

Power management systems

Technical Specifications


Voltage:Up to 500 V

Current:Via special high-accuracy CTs (100 A / 200 A / 400 A)

Accuracy:Voltage & current 0.5%, kW/kVA 1%, kVAr 2%, PF 1%, kWh Class 1.0

Frequency:0.01% accuracy

Features:Per-channel measurement, load management module, RS485 Modbus RTU

Protection:IP52 front, IP20 case
