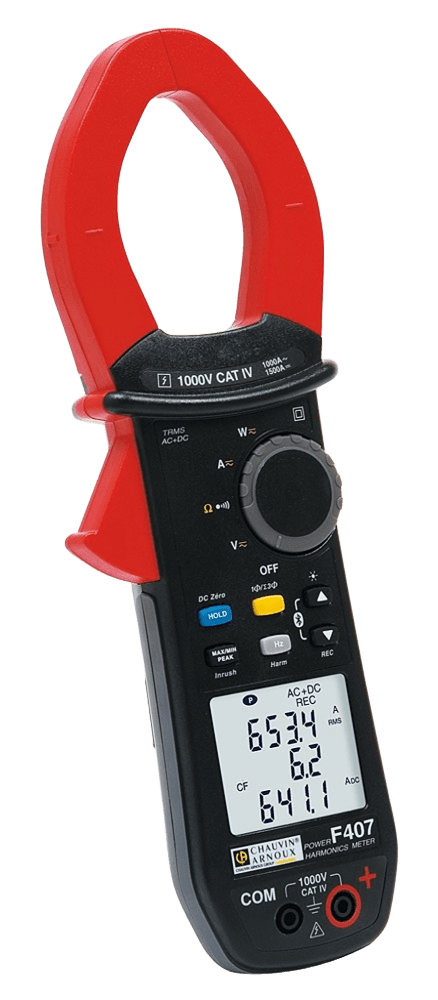

Power & Harmonics Clamp Meter

Name: Power & Harmonics Clamp Meter
Brand: AGN ELECTRICALS
Availability: OutOfStock

Rs. 0.00

Sale Sold out

F407/F607

The Power & Harmonics Clamp Meter series provides advanced harmonic analysis, Bluetooth communication, and data logging for in-depth power quality troubleshooting.

Voltage Range

Up to 1,000V

Accuracy

1% + 3 counts

Key Features

True RMS reading on AC and AC+DC

Harmonics up to 25th order

Bluetooth Communication

Data recording & PC interface

Measures kW, kVAr, kVA, PF & DPF

Auto range, Hold & Auto power off

Advanced harmonic analysis

Power quality assessment

Wireless data transfer

Professional reporting software

Applications

Power quality analysis

Industrial equipment monitoring

Harmonic troubleshooting

Data logging and analysis

Panel diagnostics

Motor drive testing

UPS system analysis

Technical Specifications

Current:1,000 AAC / 1,500 ADC

Voltage:AC and DC voltage up to 1,000 V

Power values:W / VA / var, PF & DPF

Harmonic Distortion:Yes

Harmonics:Up to 25th order

Resistance and continuity:Resistance and audible continuity

Analysis:Analysis of Min, Max and Peak± on all functions

TrueInrush current measurement:Yes

Data recording:Yes

Communication:Bluetooth interface and PC software
