Premium Multi Function Meter

Name: Premium Multi Function Meter
Brand: AGN ELECTRICALS
Availability: OutOfStock

Rs. 0.00

Sale Sold out

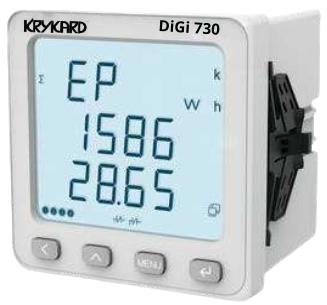

DiGi 730

The DiGi 730 offers premium energy measurement with extended harmonics analysis and advanced I/O capabilities for demanding industrial and commercial applications.

Safety Rating

CAT III 480V

Accuracy

Class 0.5s/0.2s

Key Features

Accuracy Class 0.5s /class 0.2s as per IEC 62053-22

3-line bright LCD display

PT & CT programmable

6 Digital inputs, 3DO & 1AO (730D)

Tariff Energy Recording (6 rates)

RS485 port with Modbus RTU protocol

Baud rate up to 115,200 bps

Individual Harmonics up to 51st order

Advanced power quality analysis

Comprehensive data logging

Applications

Premium energy monitoring

Industrial process control

Multi-tariff energy billing

Advanced power quality analysis

Building automation systems

Renewable energy monitoring

Technical Specifications

Voltage:110/400 V LL

Current:5 A / 1 A programmable

Accuracy:V/I 0.2%, power 0.5%, kWh Class 0.5s

Harmonics:Up to 51st order, THD

I/O:6 DI, 1 pulse output, 3 relay outputs, 1 analog output

Communication:RS485 Modbus RTU
