Solar Clamp Meter
Solar Clamp Meter
Regular price
Rs. 0.00
Regular price
Sale price
Rs. 0.00
Quantity
Couldn't load pickup availability

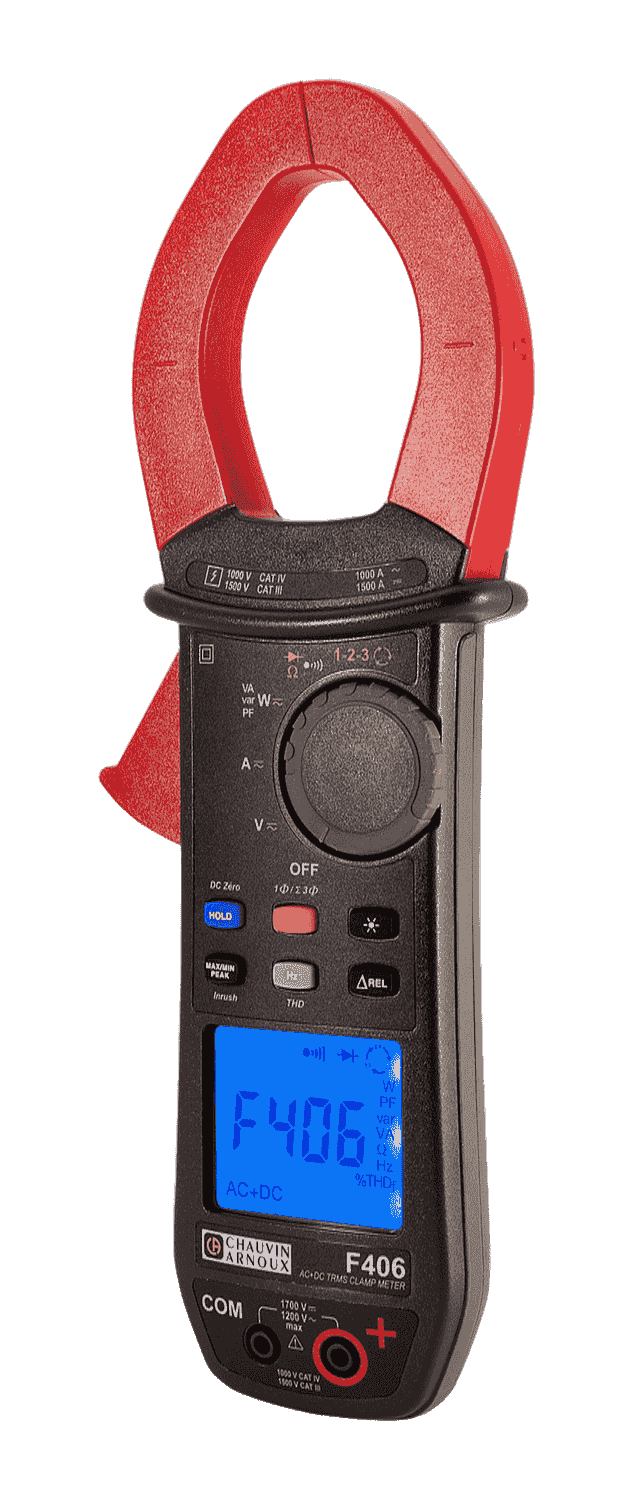

F406/F606
Solar Clamp Meter
The Solar Clamp Meter series is designed for photovoltaic and renewable energy applications, supporting high DC voltages and advanced power measurements for solar professionals.
Voltage Range
Up to 1,200V AC/1,700V DC
Accuracy
1% + 3 counts
Key Features
Specially designed for Photo voltaic applications
True RMS reading on AC and AC+DC
AC and DC voltage up to 1,700 V DC
Current: up to 2,000 A AC / 3,000 A DC
Measures kW, kVAr, kVA & PF
PV specific features
High DC voltage capability
Solar panel testing functions
Environmental resistant design
Professional grade accuracy
Applications
Technical Specifications
Clamping diameter:48 mm
Current:1,000 A AC / 1,500 A DC
Voltage:Up to 1,200 VAC / 1,700 VDC
Resistance and continuity:Resistance and audible continuity
Power values:W, VAr, VA, PF and Harmonic Distortion
Phase rotation:"2-wire" phase rotation
Measurements:Relative (ΔX) and Differential (ΔX/X) measurements
Diode test:Diode test
AC/DC detection:Automatic AC/DC detection
TrueInrush:True-inrush current measurement
Hold_Min_Max_Peak:Hold, Min, MAX, Peak+ / Peak-
Safety rating:CAT IV 1,000 V / CAT III 1,500 V
Protection:IP54 protection rating
