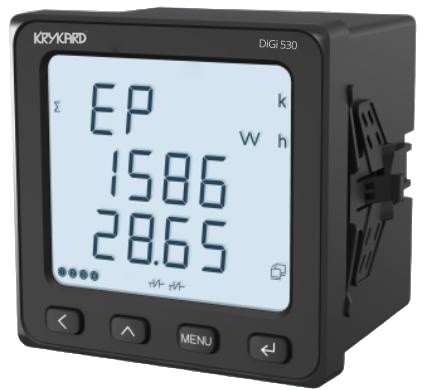

DiGi 530
Standard Multi Function Meter
The DiGi 530 offers reliable energy and power measurement for industrial and panel applications, with advanced features and high accuracy for comprehensive monitoring solutions.
Safety Rating
CAT III 480V
Accuracy
Class 0.5s
Key Features
Accuracy Class 0.5s as per IEC 62053-22
3-line bright LCD display
PT & CT programmable
Password protection for setup page
RS485 port with Modbus RTU protocol
THD & Harmonics up to 31st order
Load management feature
Technical Specifications
Voltage:110/400 V LL
Current:5 A / 1 A programmable
Accuracy:V/I 0.2%, power 0.5%, kWh/kVARh Class 0.5s
Harmonics:Up to 31st order
Communication:RS485 Modbus RTU
Pulse output:1 channel
Bi-directional energy measurement
Compact 96mm x 96mm panel mount design
Wide operating temperature range
Applications
Voltage:110/400 V LL
Current:5 A / 1 A programmable
Accuracy:V/I 0.2%, power 0.5%, kWh/kVARh Class 0.5s
Harmonics:Up to 31st order
Communication:RS485 Modbus RTU
Pulse output:1 channel
